30 watts AC30 type guitar amplifier |
|

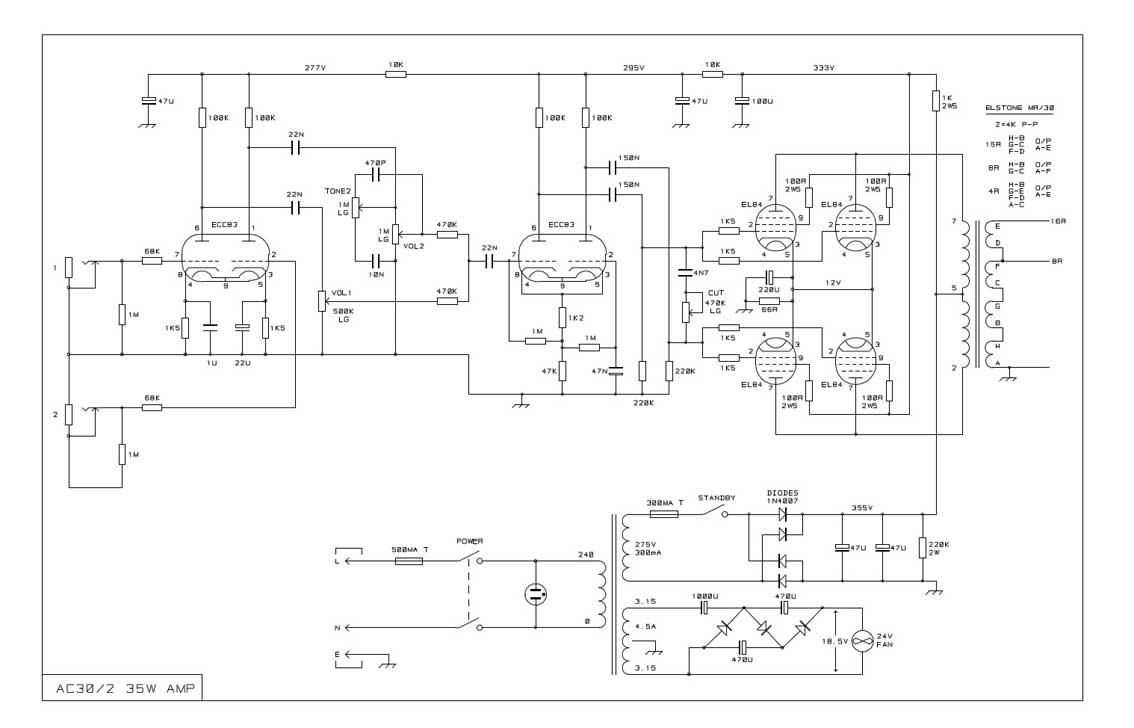

The VOX AC30 Uses 4 EL84 in the power amp and 2 to 7 ECC83 in the input amp. It's a lot off tubes, I will try to spend a little les tubes using 4 pcs. EL84 in the power amp, and 2 pcs. ECC83, which can be used as phase reverser and input amp. The schematic is here.
|

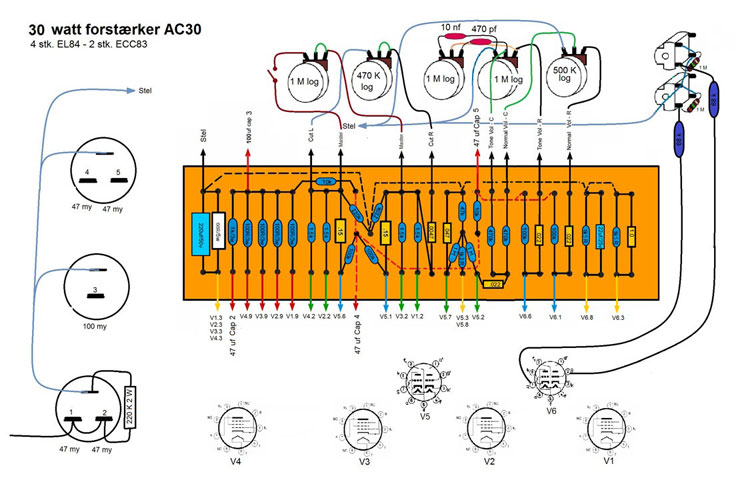

| From the schematic I have made a layout for component placement and connections of tubes and potentiometers. |
|

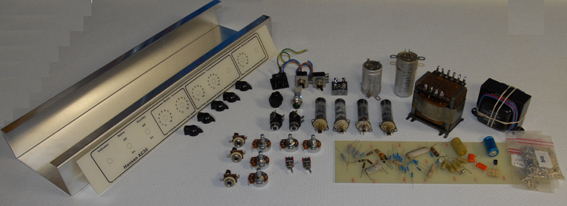

| Then there are complete kits |
 |

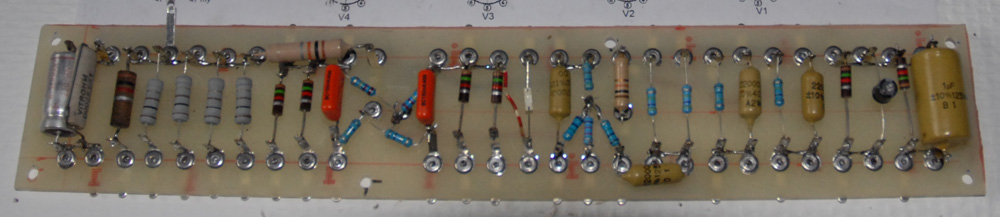

| The finished fibreboard with all components installed |
 |

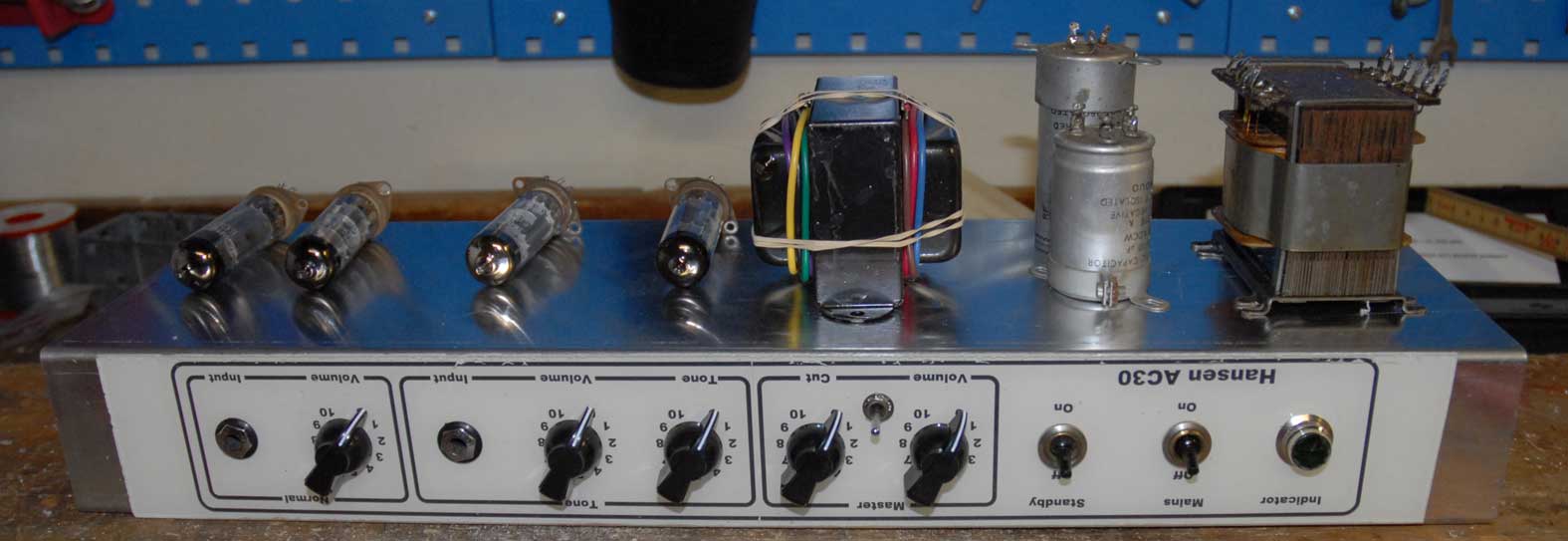

| Look on this front plate |
 |
|

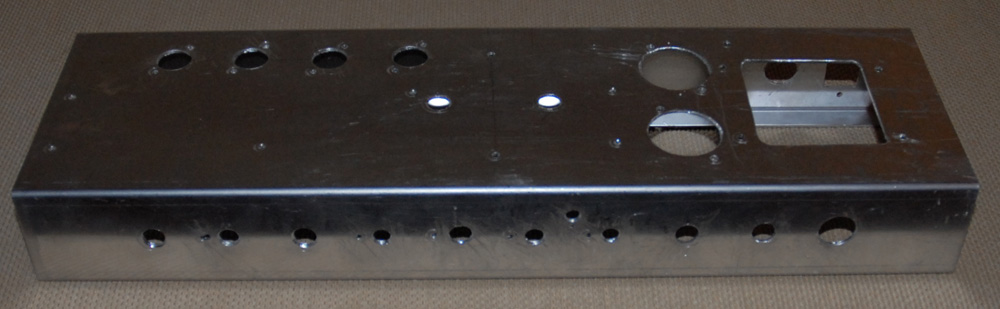

Chassis Front
|

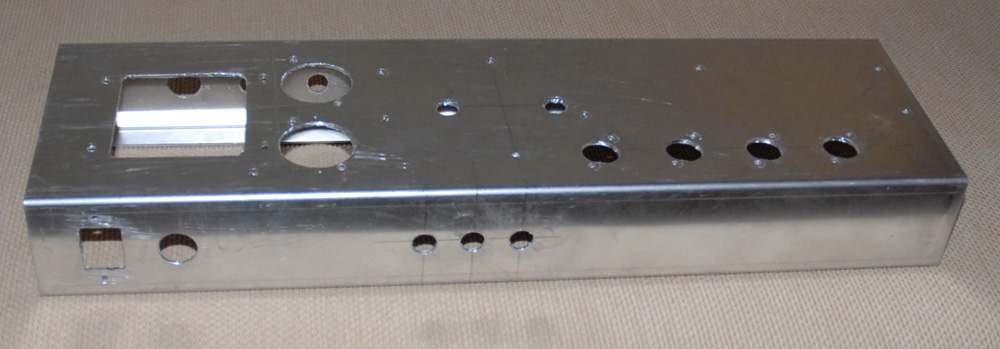

| Chassis bag
|
|

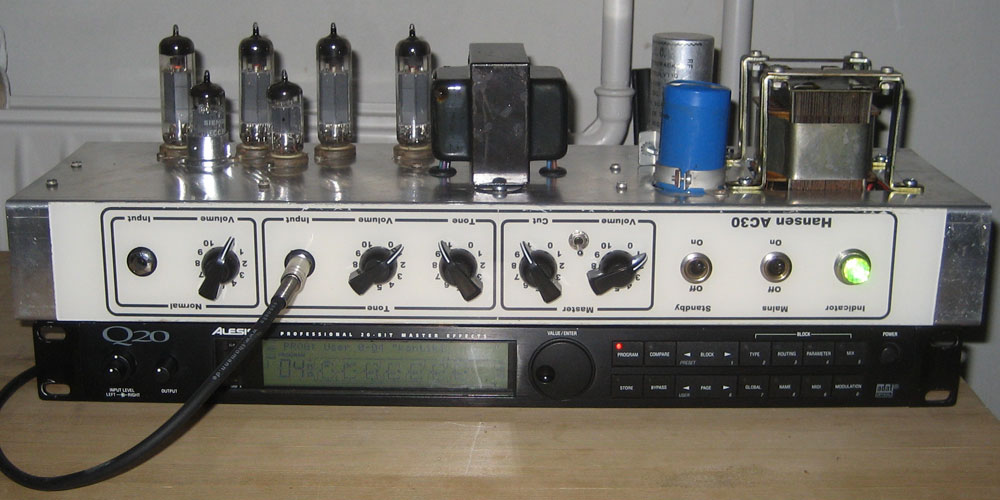

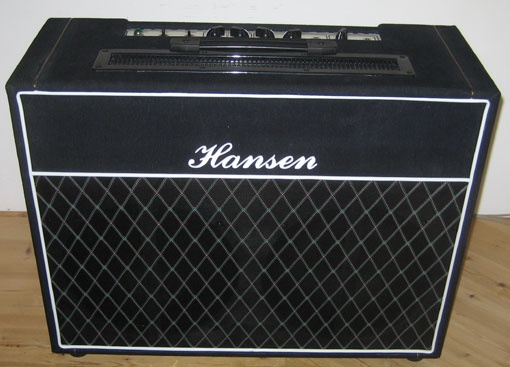

The finished amplifier
|
|

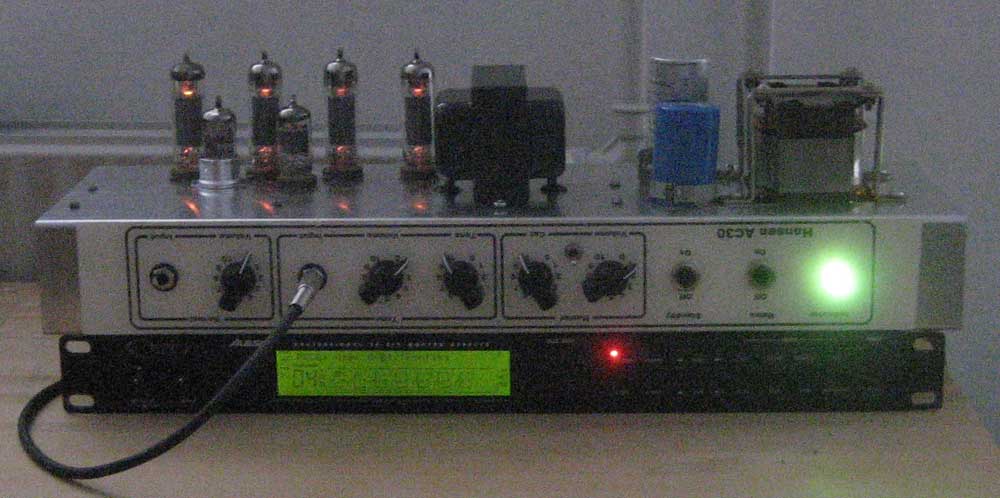

The tubes is lightning bright when the heater voltage is on.
|
|

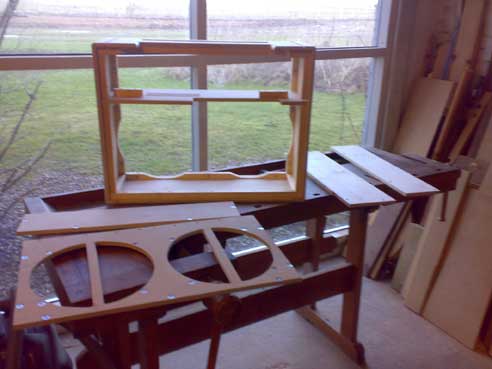

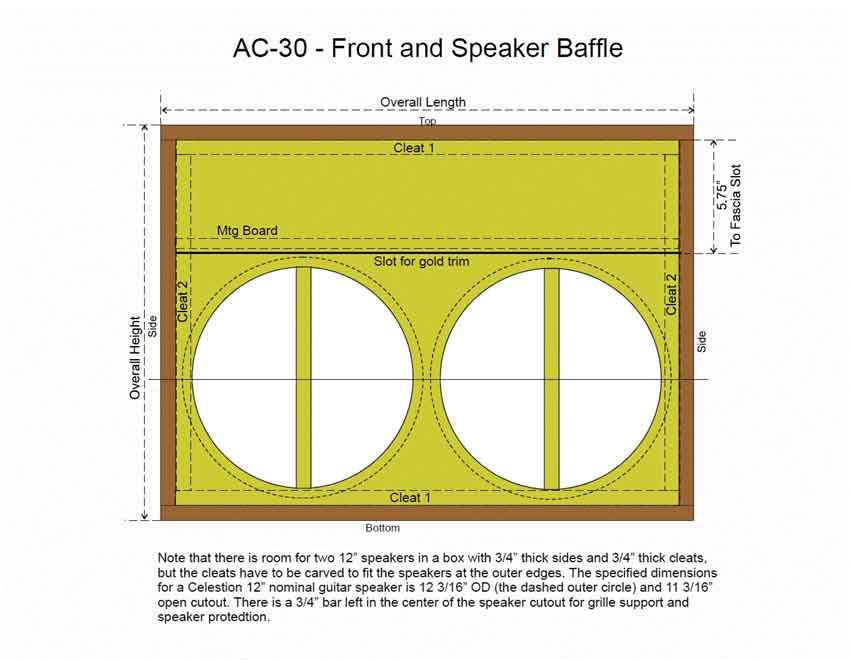

I found this drawing of the cabinet to a VOX AC30 online, here is the cabinet without front and backplate.  |
|

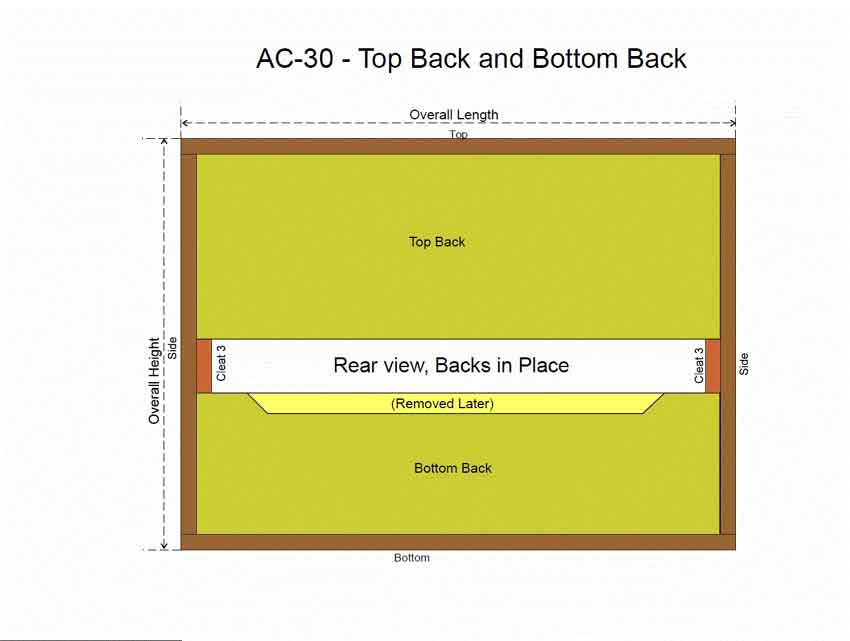

Cabinet seen with backplate.  |
|
The cabinet set with front plate.  |
|

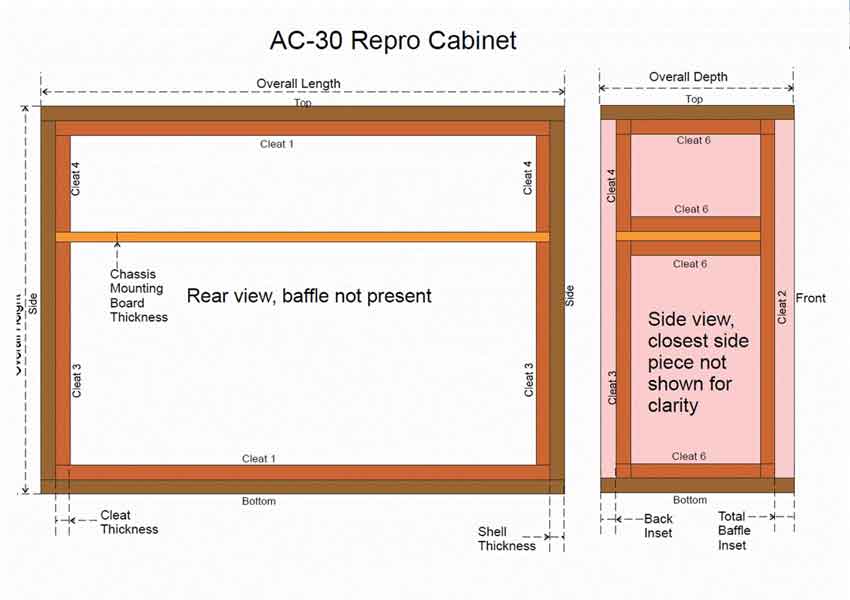

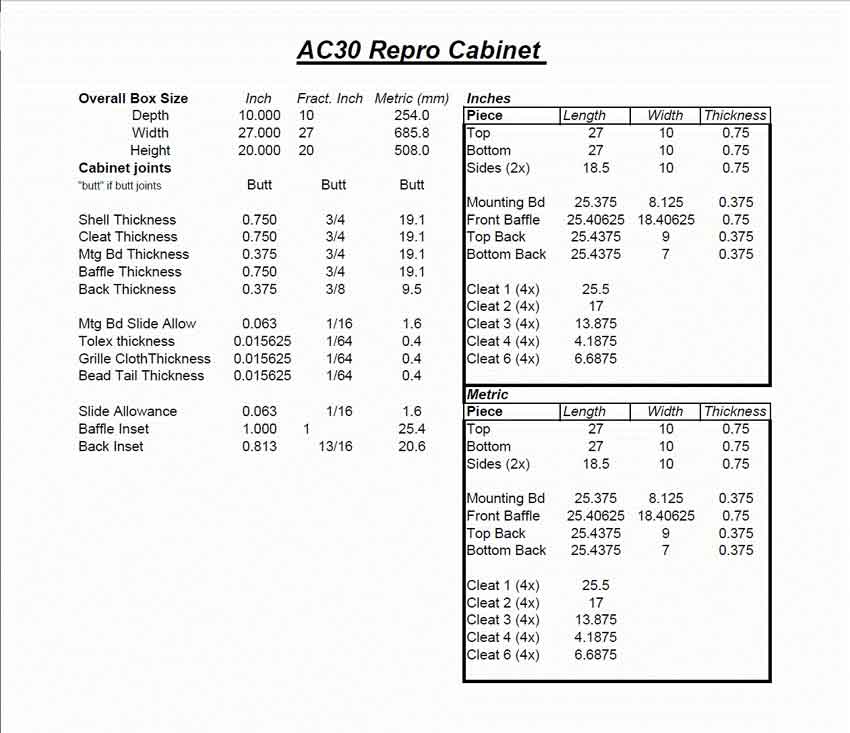

Specifying dimensions in mm and inches.  |
|
The cabinet is now ready for clothing, but I have gathered throughout the amplifier to be sure that everything fits together before I continue. The amplifier front view.  |
|

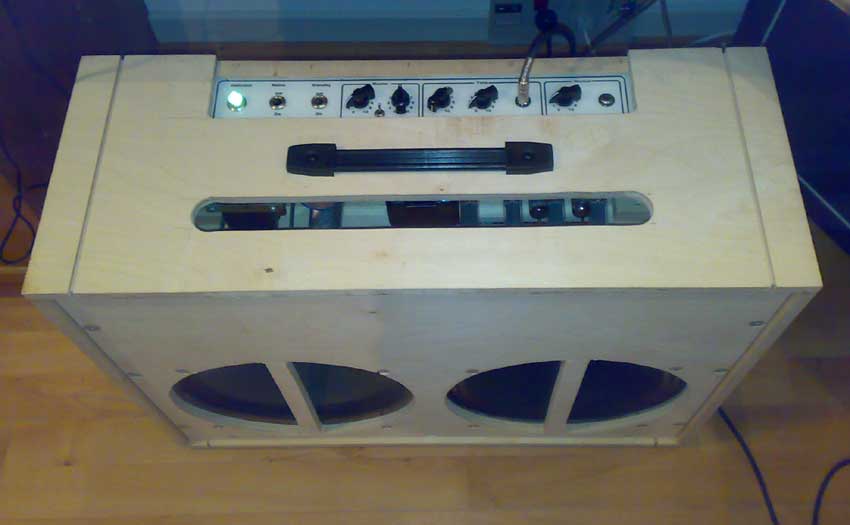

An image of the top.  |
|

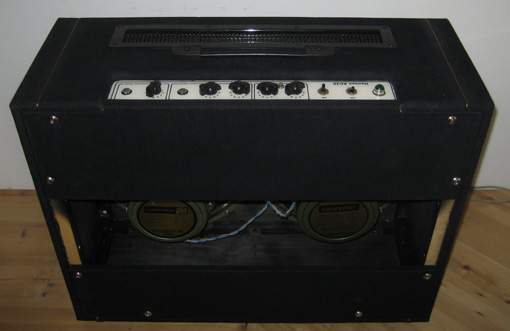

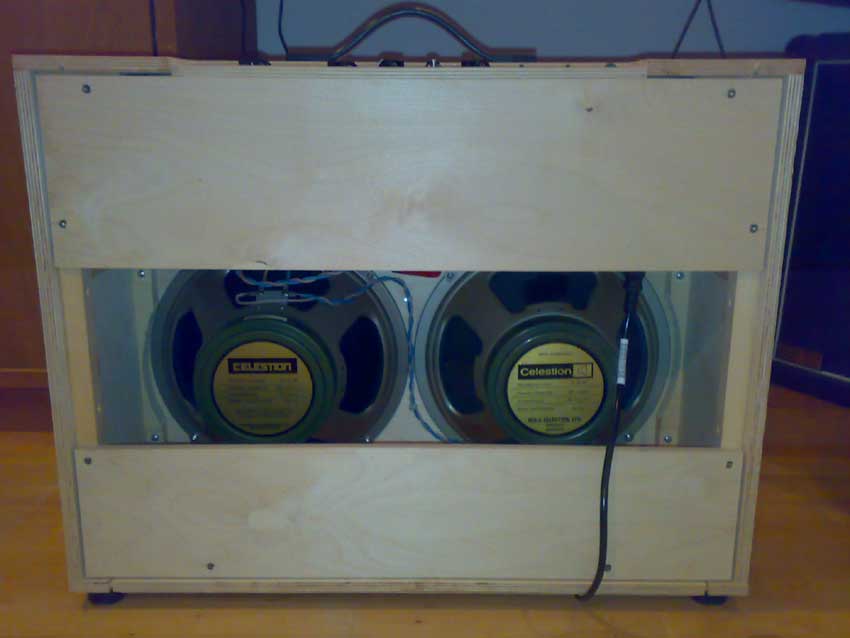

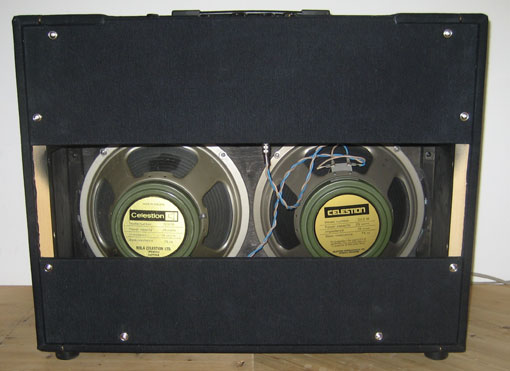

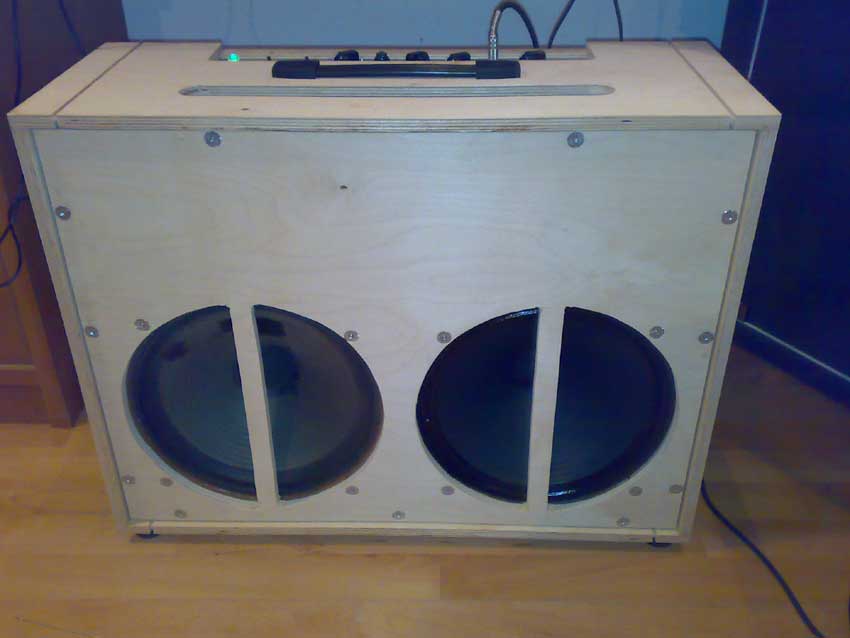

A picture of the back with the 2 "Celestion" Greenback G12M speakers, the right is from the 60s and the left is a new one from China.  |
|

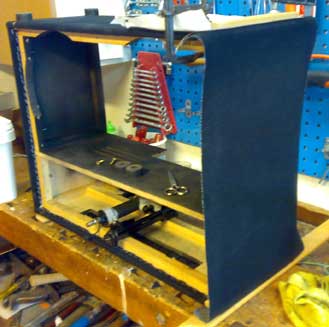

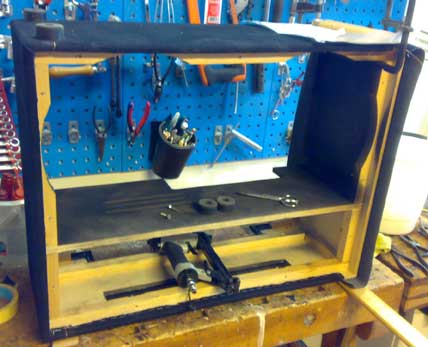

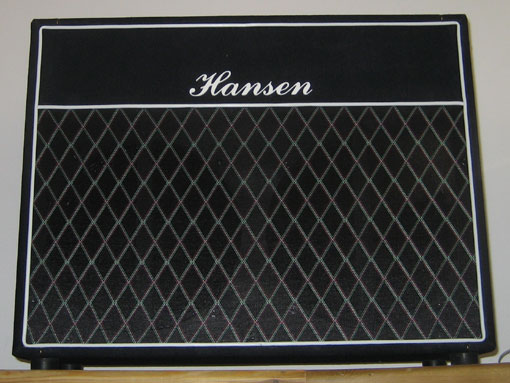

A series of pictures of completion of the cabinet.  |
 |
 |
 |
 |
 |
 |
 |
|
