Marshall 1930 "POPULAR" Guitar Tube Amp clone 2

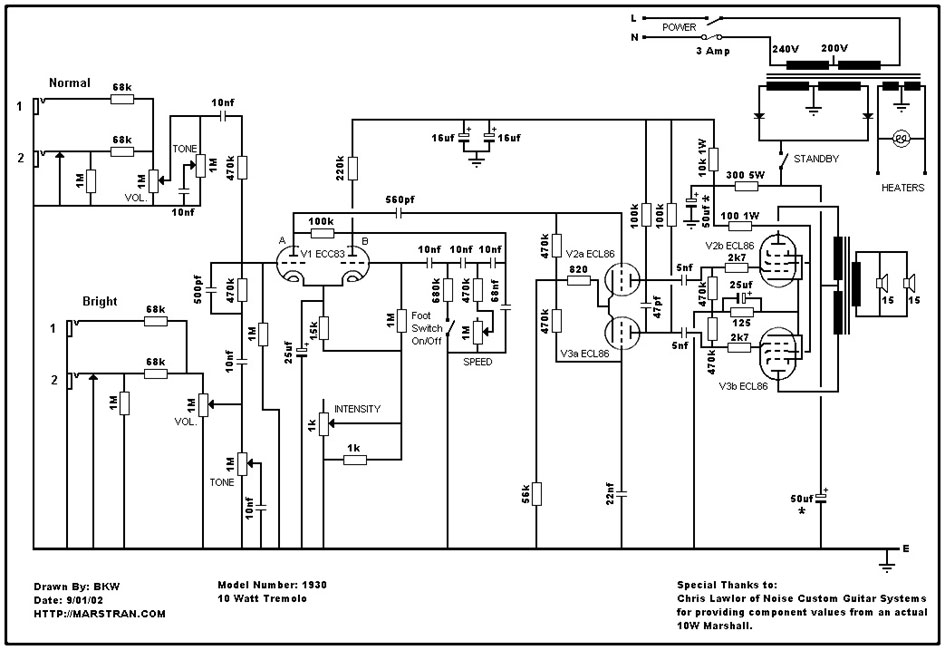

I have in the past made ​​a copy of Marshall's 10 watt 1930 "POPULAR" amplifier, it came to the town of Haderslev, and the enthusiasm for it in this town, did that there was a person who made an order on an amp like it. I was now being more experienced and the small correction mechanisms that would created on the diagram was completed, here is the revised chart.

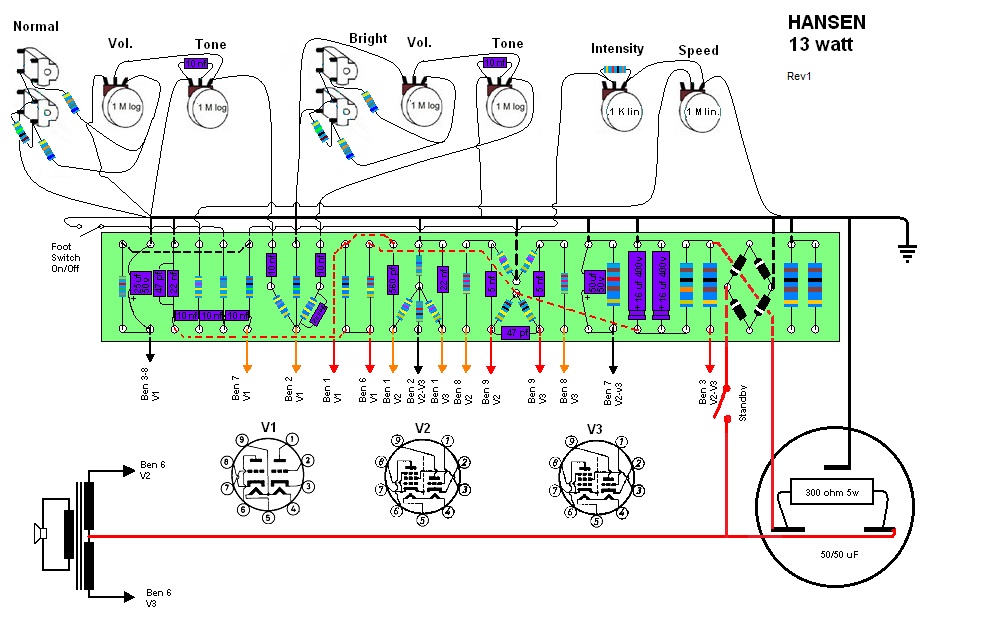

This time I have my foot on it and I have drawn a new layout for the Turretboard

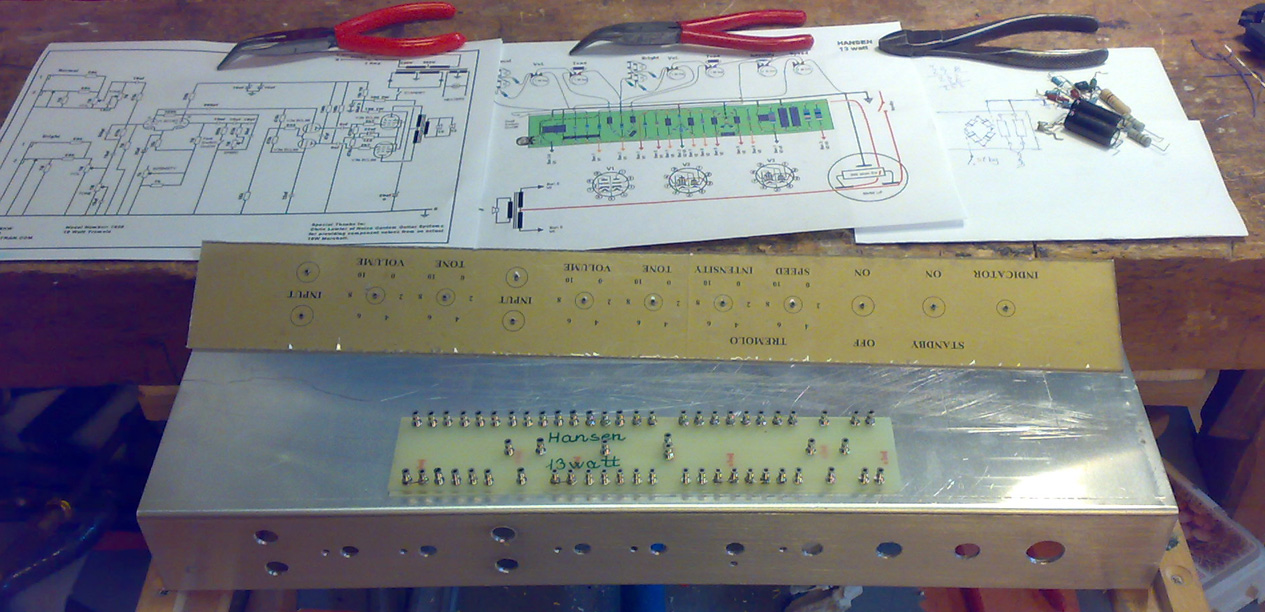

The finished Turret Board ready for the components along with the finished front panel and chassis.

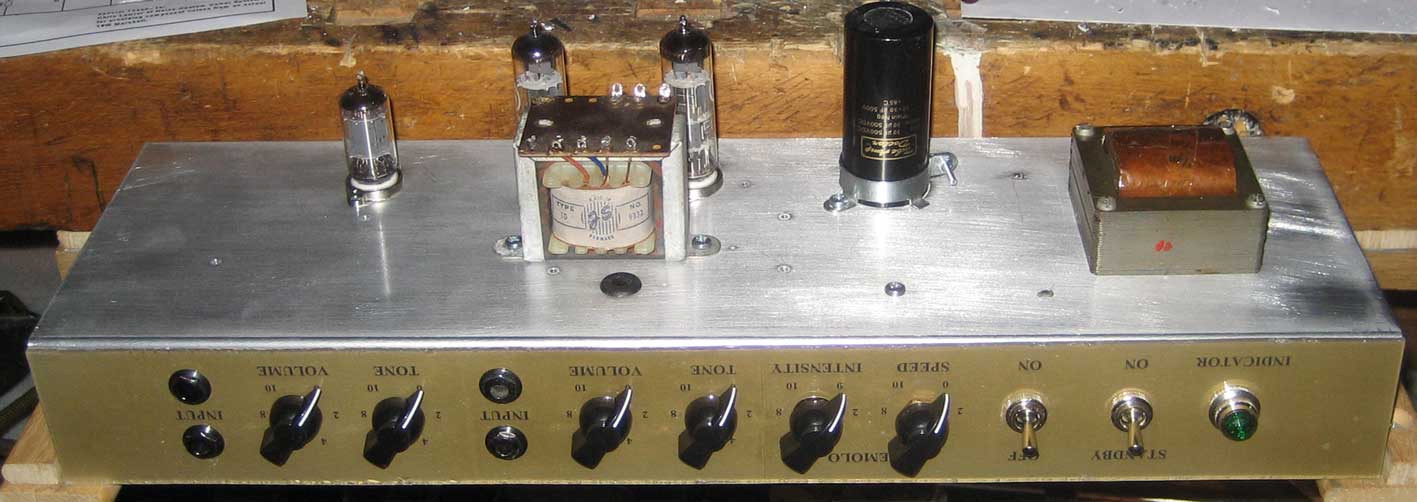

The complete amplifier from the front.

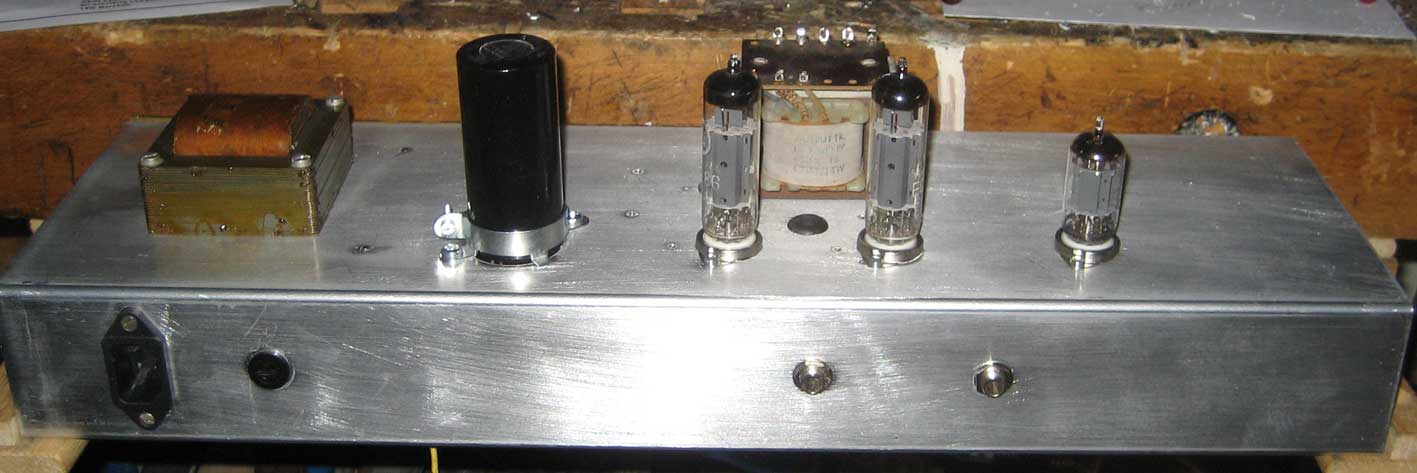

The back

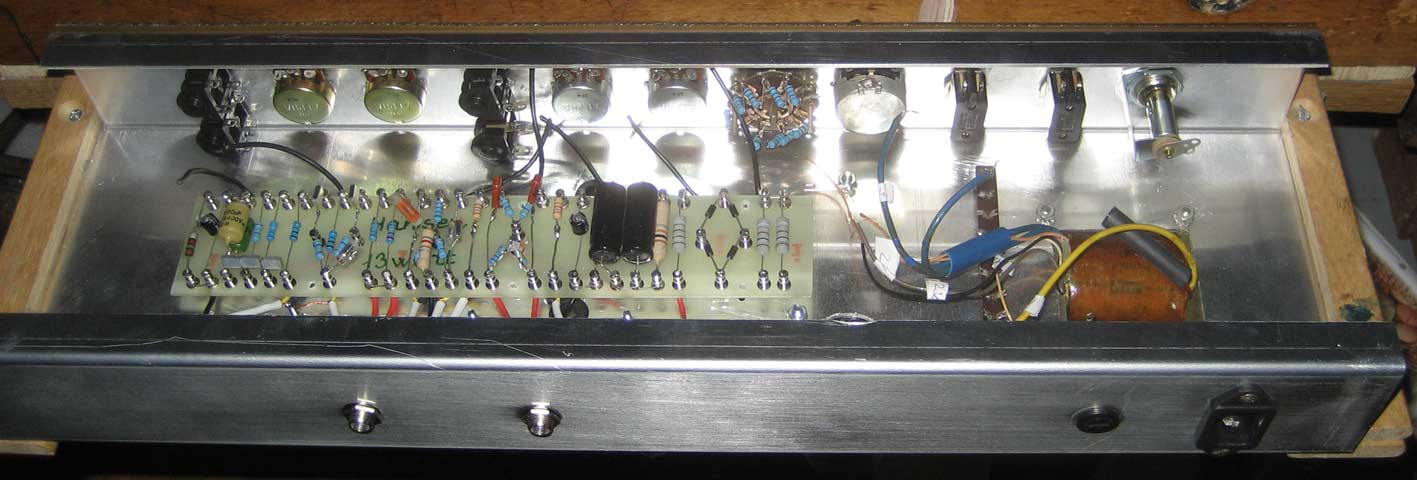

From the component side.

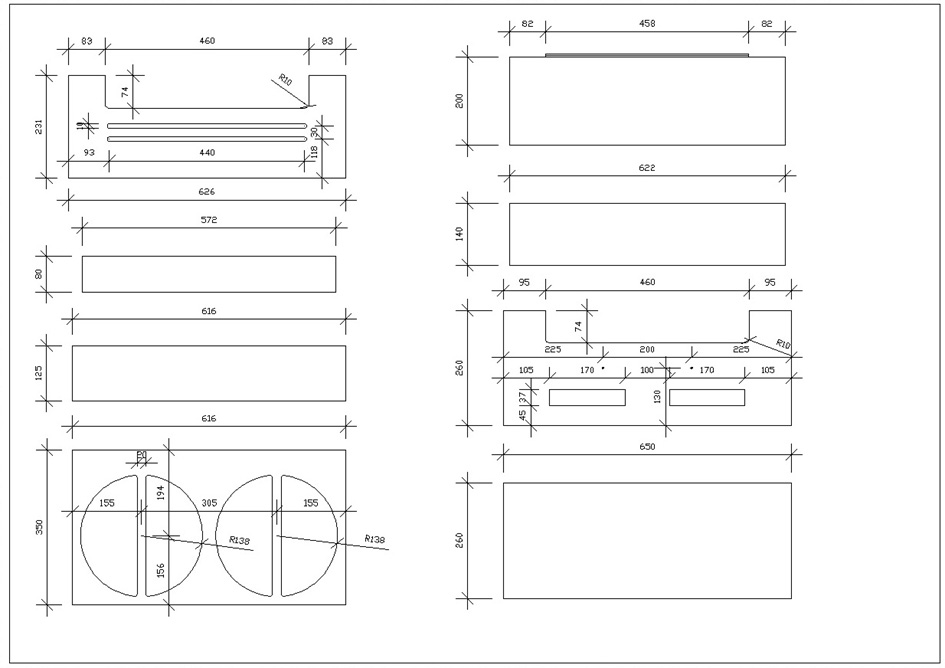

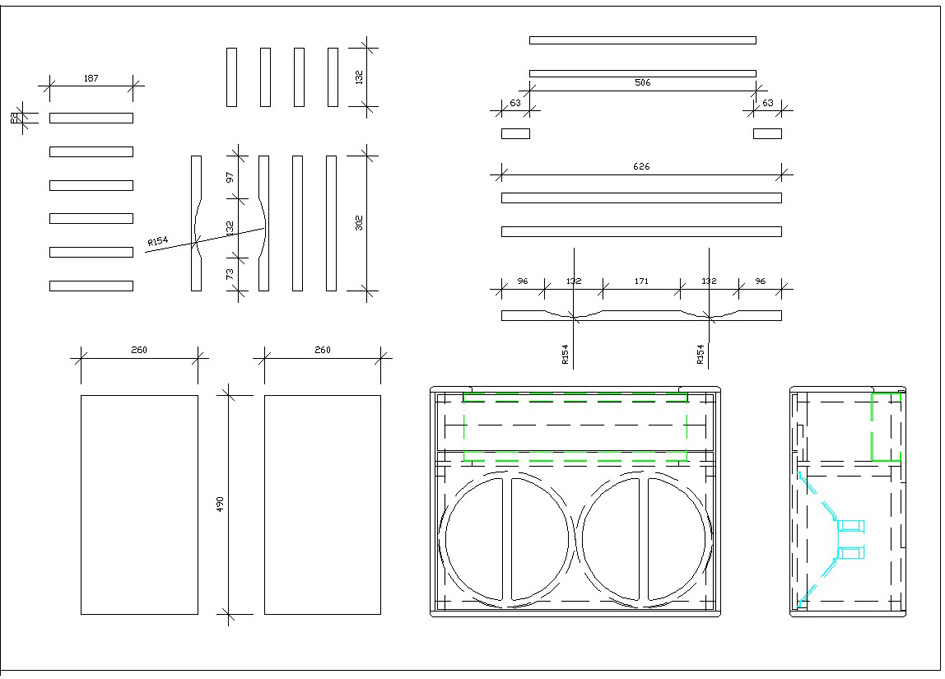

There is a drawing cut plan for cabinet parts.

I have decided that my following cabinets should be performed after these drawings.

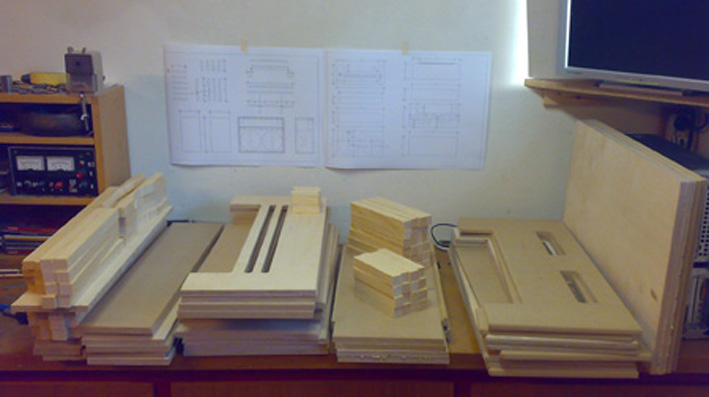

I have cut plywood parts up to 4 cabinets.

The outer frame and base plate for the amplifier chassis is assembled.

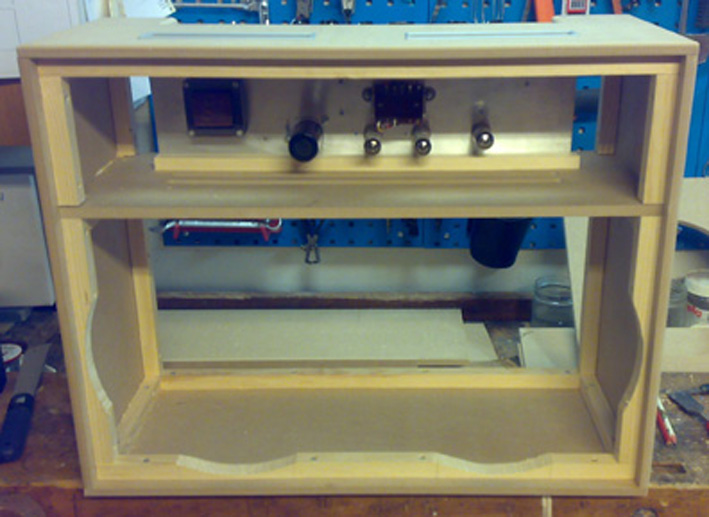

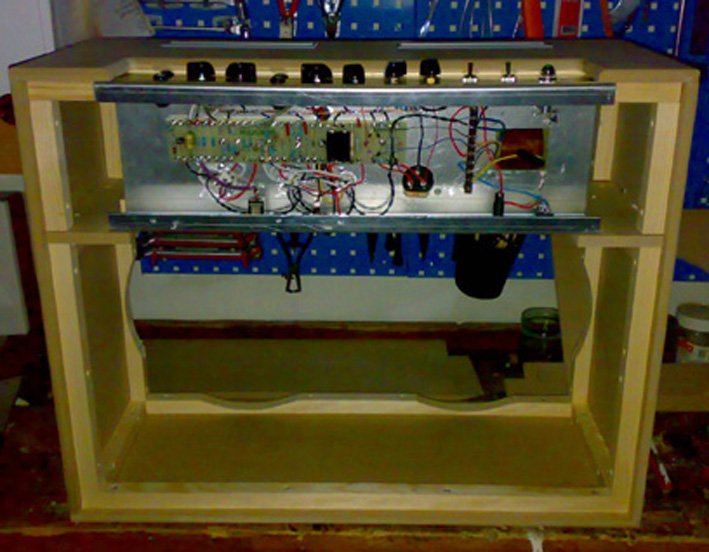

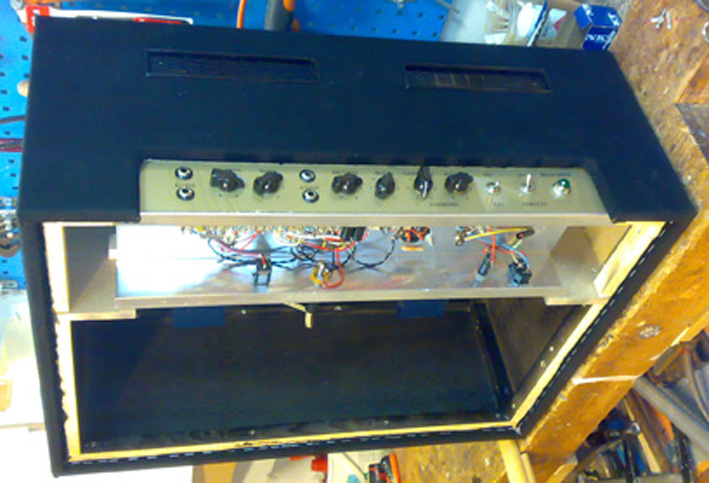

A picture showing how the amplifier chassis is mounted in the cabinet.

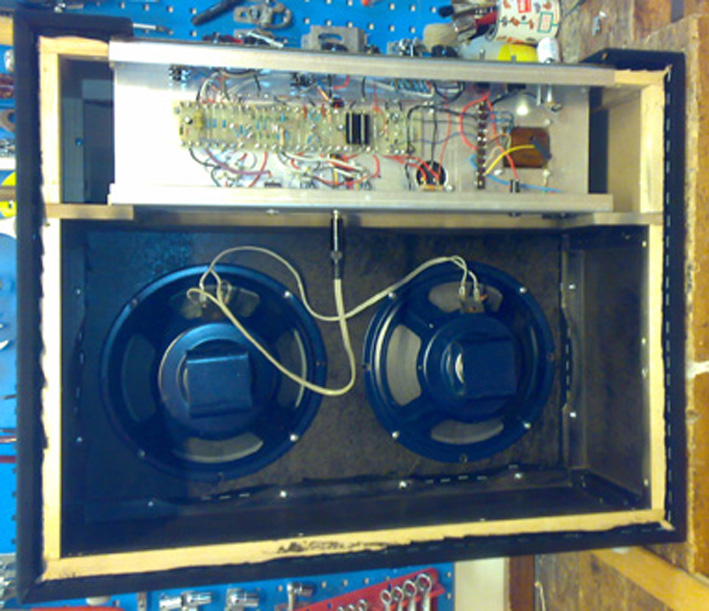

Front panel with 2 10" Eminence speakers.

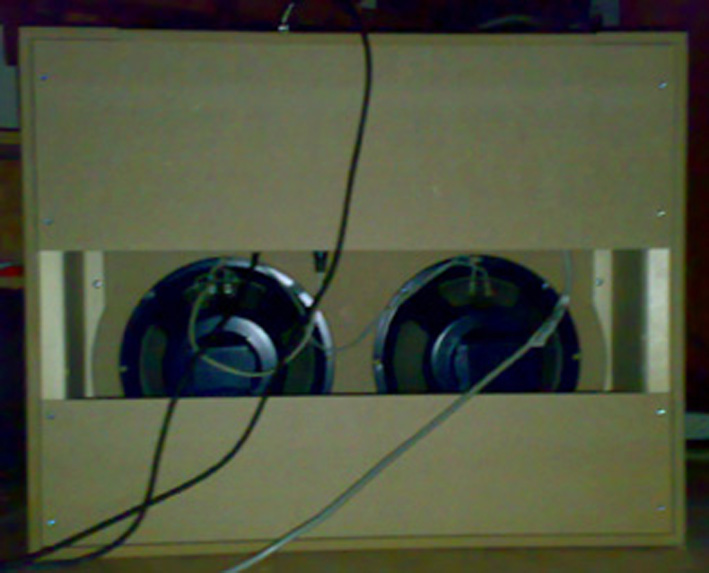

Backplates assembled.

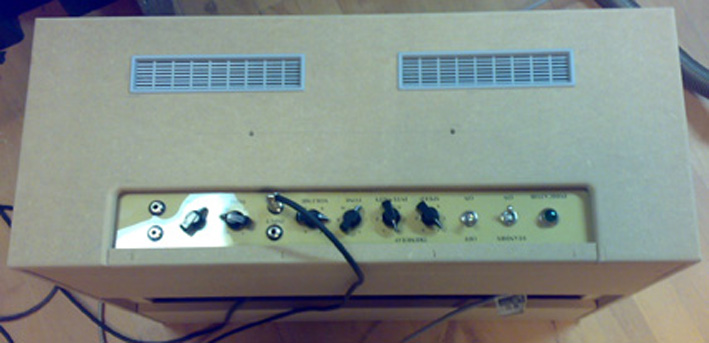

Ventilation Grilles (normally used for ventilation in the toilet doors).

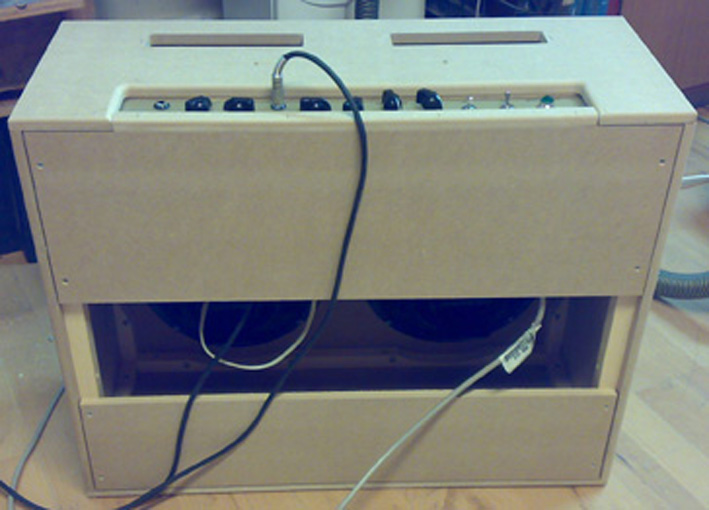

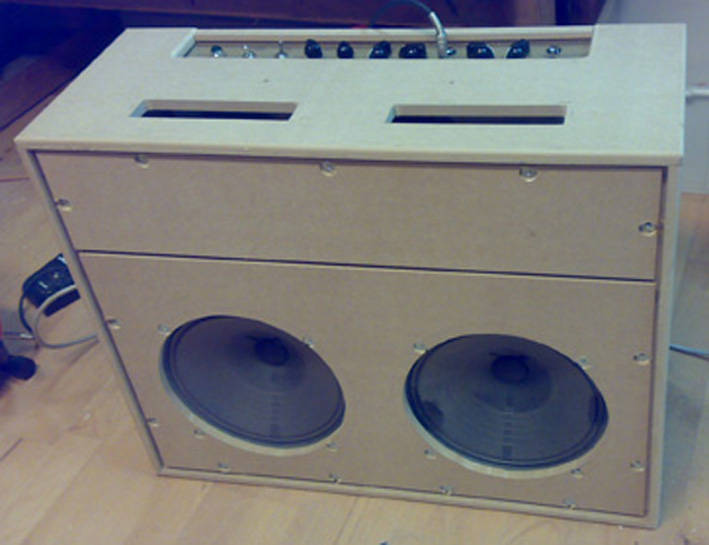

The entire amplifier before painting and clothing.

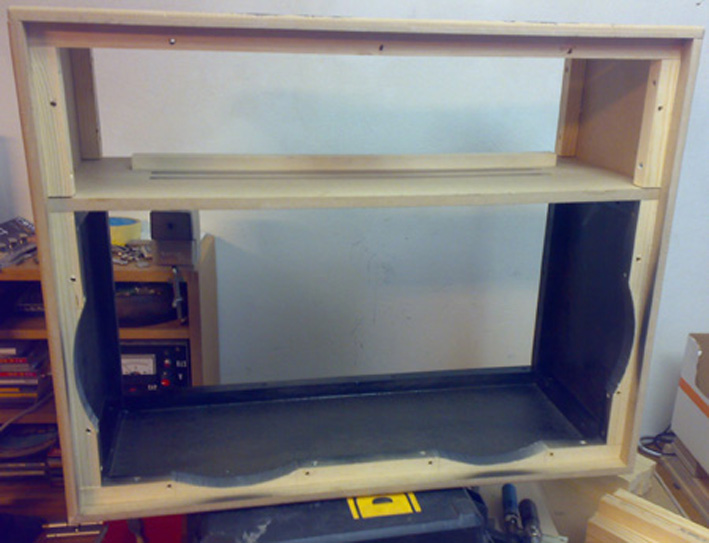

The visible part of the amplifier's interior is painted black.

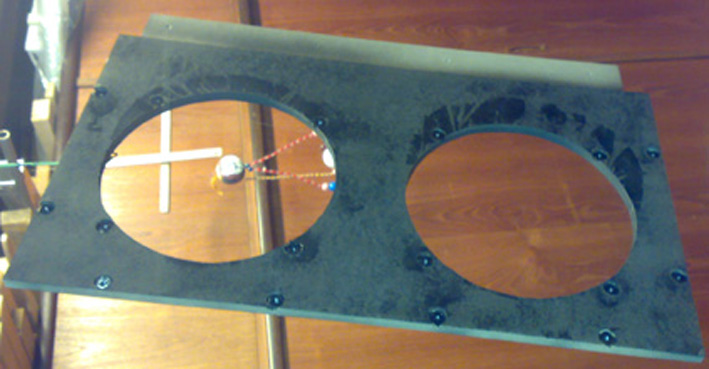

Speaker plate painted black on both sides.

The cabinet is covered with denim.

Ventilation grilles are painted black.

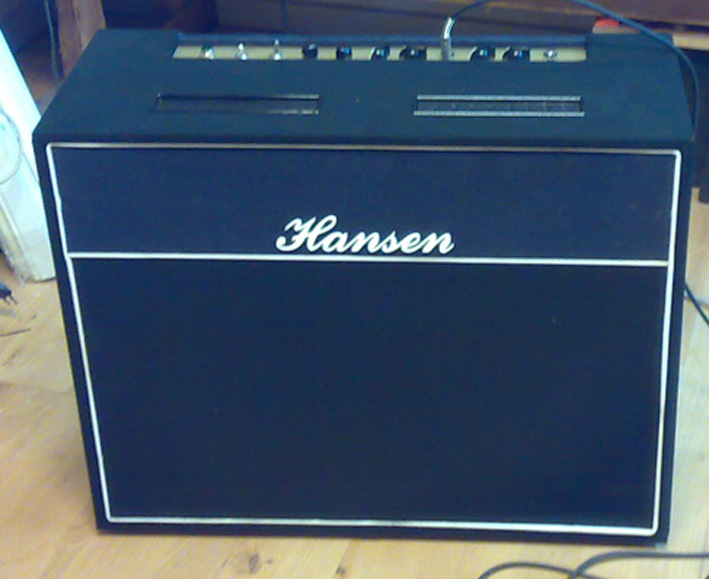

Finished amplifier with the grille and logo.

It plays like a real Marshall.
